dipper-See EXAMINER

(Series #2000) – Borehole Inspection Camera

  • For High-Definition viewing & recording in holes 1″ (25mm) & wider
  • Rugged, Portable & Affordable
  • External adjustable angle side-to-side/up-down monitor
  • Record video for future playback at the office (use included microphone to record audio notes)
  • Modular Design makes for inexpensive and easy repairs

See all dipper-See EXAMINER Replacement Parts

See Additional Options for this Product

$0.00

Product Options

Clear

Description

The dipper-See EXAMINER Borehole Inspection Camera is a cost-effective way for people performing well inspections, maintenance, and installation to do their jobs quickly and accurately. The dipper-See EXAMINER comes with everything a well inspector, well driller, or hydrogeologist needs to do more work in less time!

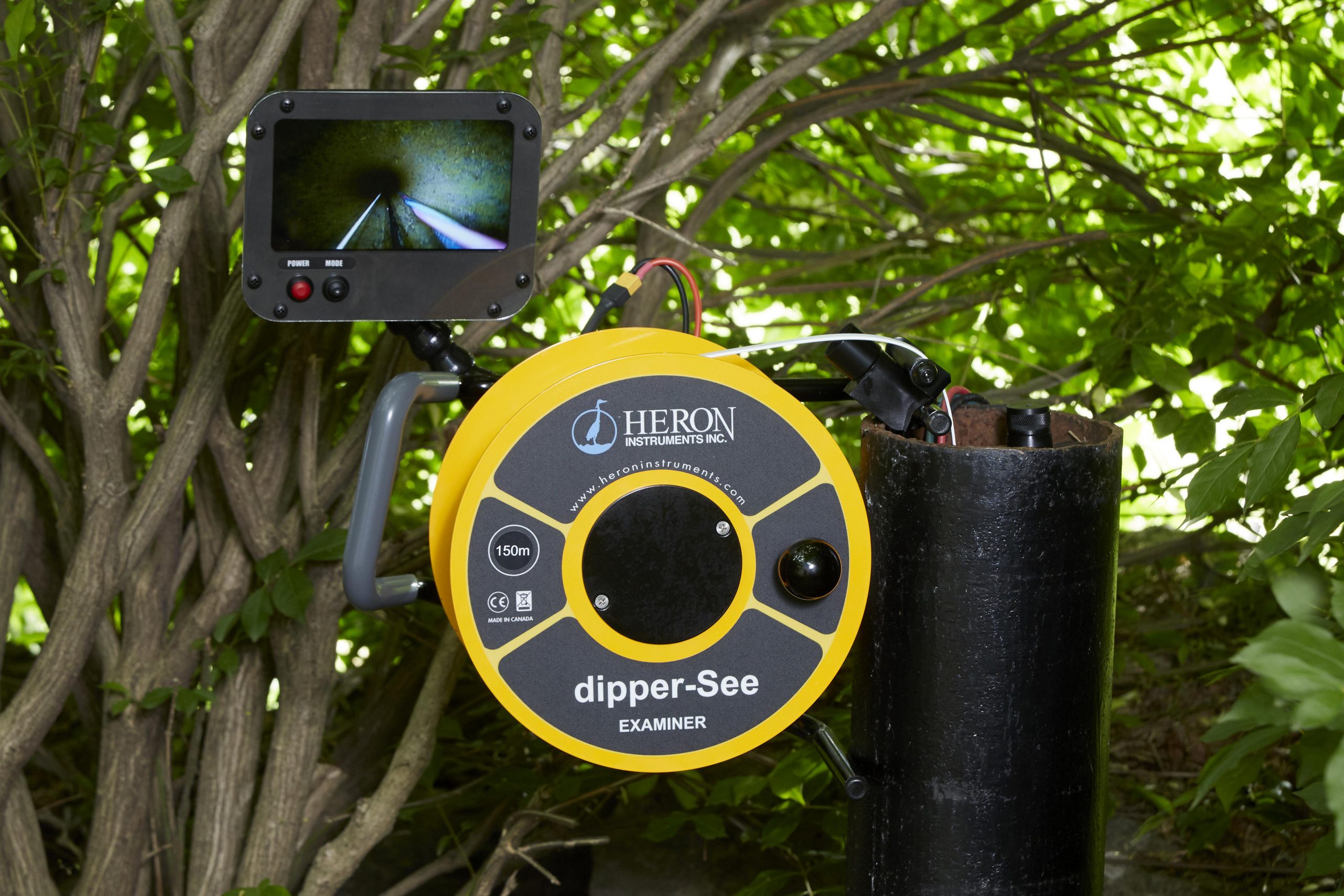

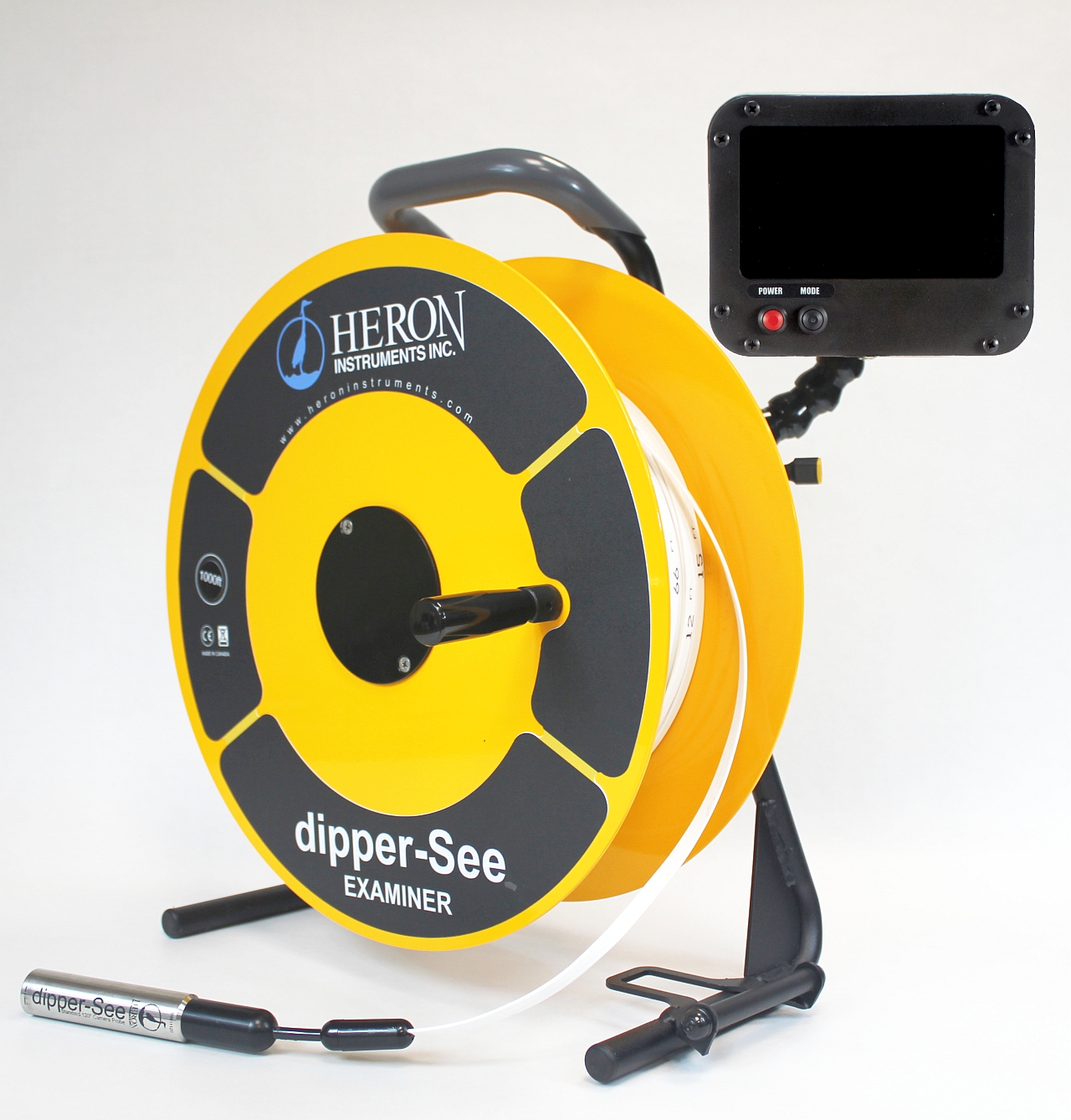

The Heron dipper-See EXAMINER is a robust and cost effective vertical downhole inspection camera. Designed with portability in mind, this self-contained unit is ideal for viewing in wells, drains, vertical shafts, open bodies of water, boreholes and narrow tubes over 25mm (1”) in diameter.

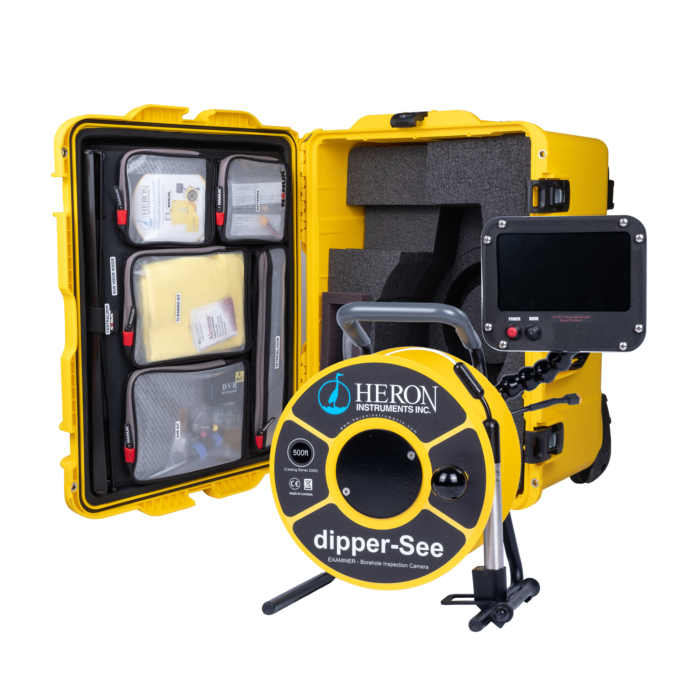

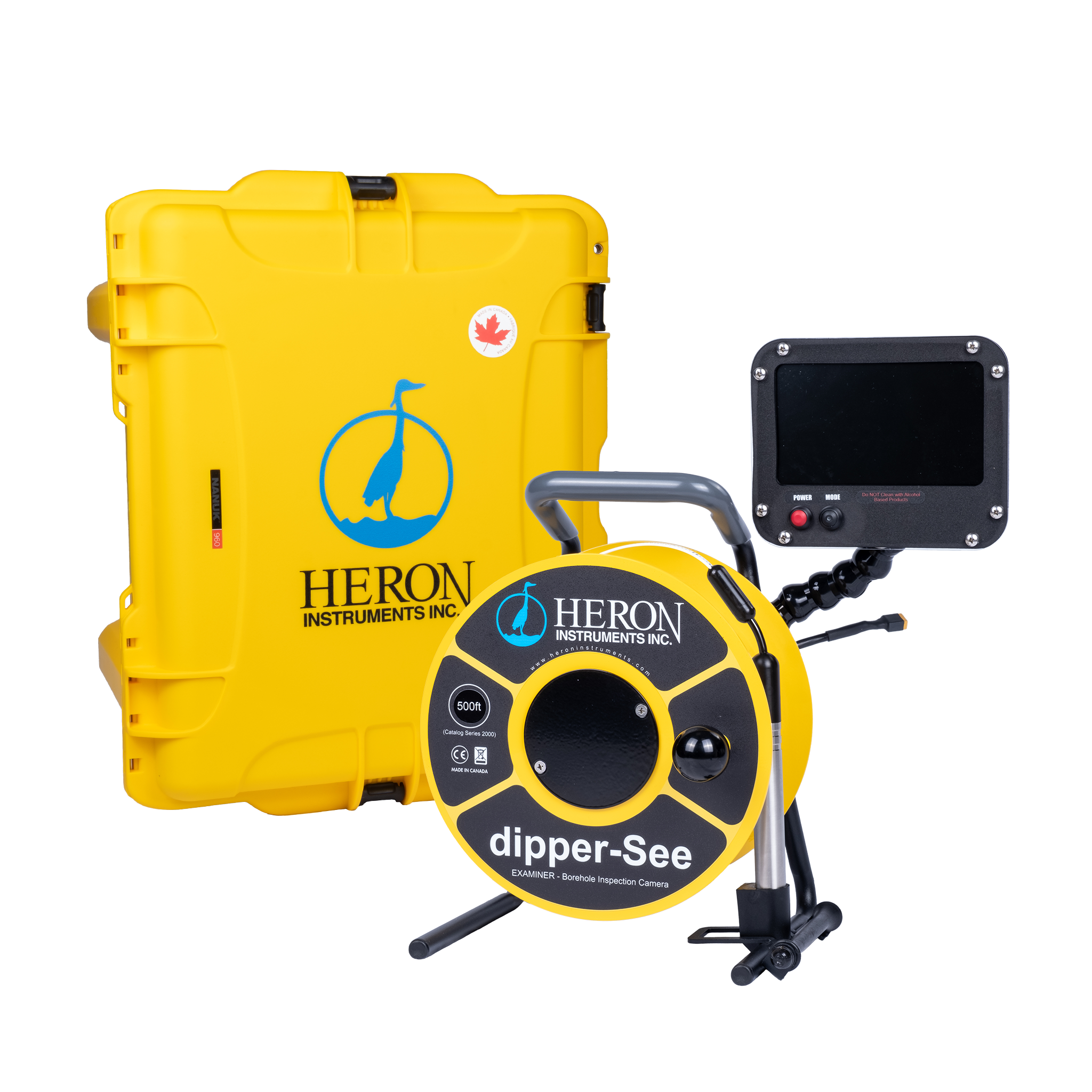

The dipper-See EXAMINER and the included accessories are easily transported in the provided super tough wheeled carry case and accessory case, ideal for protecting your investment from the elements.

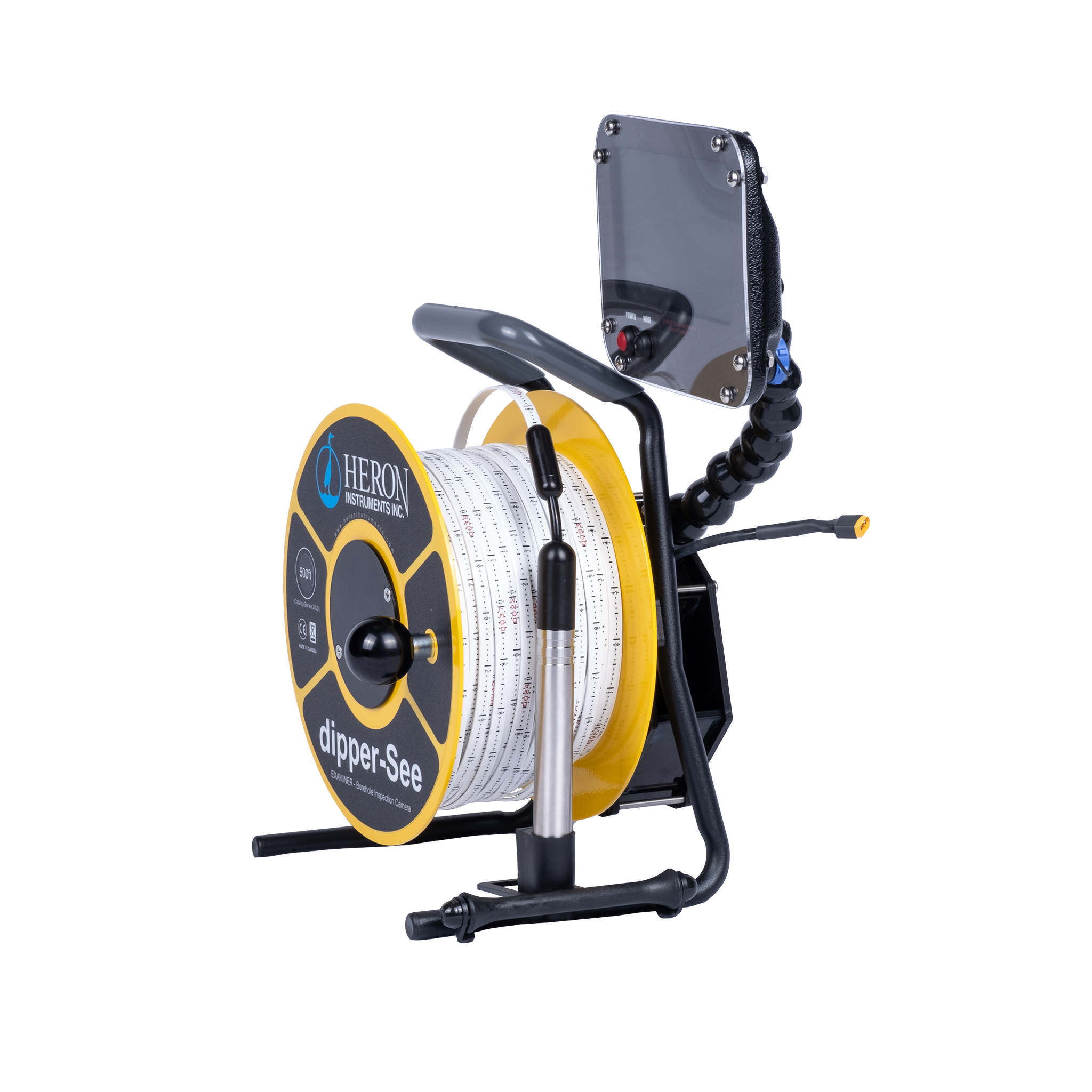

The adjustable positioning arm, conveniently attached to the frame, offers an ergonomic solution for adjusting the monitor for viewing the High Definition (HD) display screen at different angles and lighting conditions. The monitor conveniently houses all of the controls on the front of the panel. Record the video/audio on the SD card provided with the DVR, for easy transfer of video to another device.

Included:

• White Polyethylene Tape

• 1” (25.4mm) Fully Submersible Camera Probe (Replaceable) w/ holder

• Display Monitor – 600×1024, 7” (177.8mm)

• 2x Rechargeable Lithium Ion Batteries (5 hours running time each)

• Compact Battery Charger

• Centralizer tool

• Retrieval hook

• DVR (w/microphone) for audio & video recording

• 32GB SD Card

• Modular design for easy service/replacement

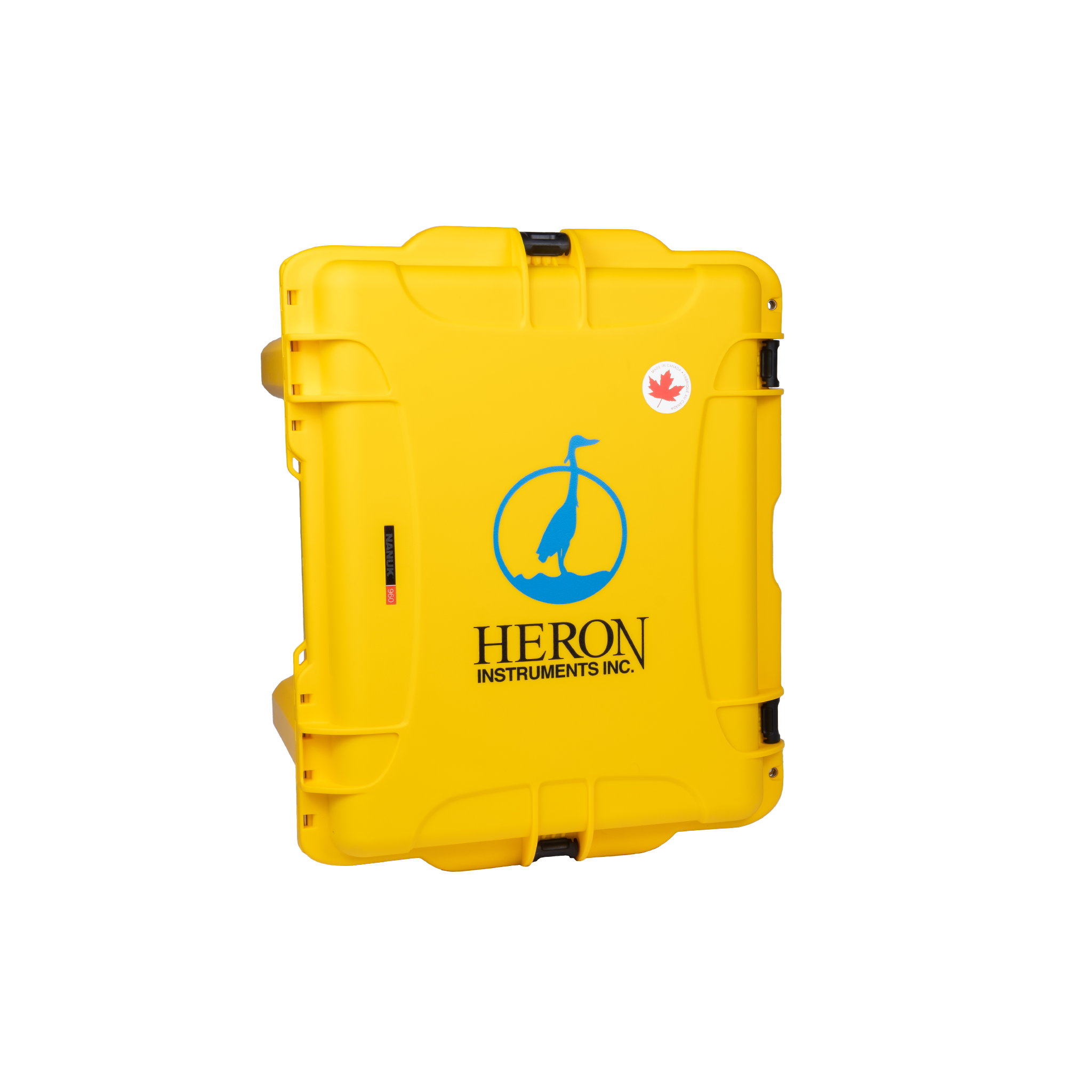

• Rugged, Wheeled Storage Case

Additional information

Measurement Preference

Imperial, Metric

Length

150m, 300m, 500ft, 1000ft

Manual

DVR Manual

Specifications

dipper-See EXAMINER Technical Specification Sheet – 655KB
