conductivity plus

Description

(Series #1700) – Conductivity, Temperature & Water Level Meter

• Ideal for measuring conductivity, temperature and water levels
• Accurately display conductivity up to 250,000µS and temperatures up to 60°C (140°F)
• Excellent for early detection of saltwater intrusion in areas with high levels of salinity (Ex. Coastal Sites), detecting contamination, and profiling conductivity or temperature.
• Modular Design and automatic error detection makes for inexpensive and easy repairs

Description

The conductivity plus enables accurate measurements of conductivity, water levels and temperatures in wells, boreholes, stand pipes and estuaries where salt water intrusion and contamination levels become a concern. Conductivity can be an early indicator of change in a water system due to fluctuations of salinity in water levels. The premium padded carry case comes included to protect your precision instrument from the elements.

The high tensile steel core measuring tape is tested for stretch resistance to ASME standards and is ideal for profiling up to 60˚C (140˚F). An LCD screen accurately displays conductivity values up to 250,000 µS and temperature range from -20˚C – 60˚C (-5˚F – 140˚F). The conductance temperature compensation coefficient is 2.0%/˚C. Calibration of the conductivity plus is easy using up to 4 readily available solutions (1413μS/cm, 5000μS/cm, 12880μS/cm, 111800μS/cm).

Features:

• Narrow 16mm (5/8”) diameter probe
• 4 conductivity calibration points (1413μS, 5000μS, 12880μS, and 111800μS).
• 4 electrode sensor design
  • Higher range of up to 250,000 μS/cm
  • Higher accuracy
• Support for changing units to Celsius, Fahrenheit, and scientific units.
• Auto calibration. The unit will automatically detect your calibration solution saving time when calibrating.
• Advanced conductivity circuit provides superior long term sensor accuracy.
• Fully sealed and removable water-proof electronic panel.
• Triple sealed and removable electronic probe.
• Integrated self diagnostics and modular design to help troubleshoot in the field.
• Operating temperature range (-20˚ C – 60˚ C (-5˚ F – 140˚ F).
• Volume adjustment to protect your hearing.
• Battery life indication on startup.
• Lengths up to 5,000ft (1.5km) available on request.
• Includes a full calibration kit and professional factory calibration to ensure the best performance.
• Best in class battery life.
• PFAS Free wetted materials.
• Stainless bearings for smooth winding.
• Built in well hanger and roller to protect your tape.

Included:

• Premium Stainless Steel Polyethylene Coated Tape
• 5/8” (16mm) Conductivity Probe (IP68) w/ holder
• Electronic Panel with audio and visual signals (Fully Encapsulated to IP65)
• High Contrast LCD Display
• Vinyl, ergonomic holding grip
• 9V Battery

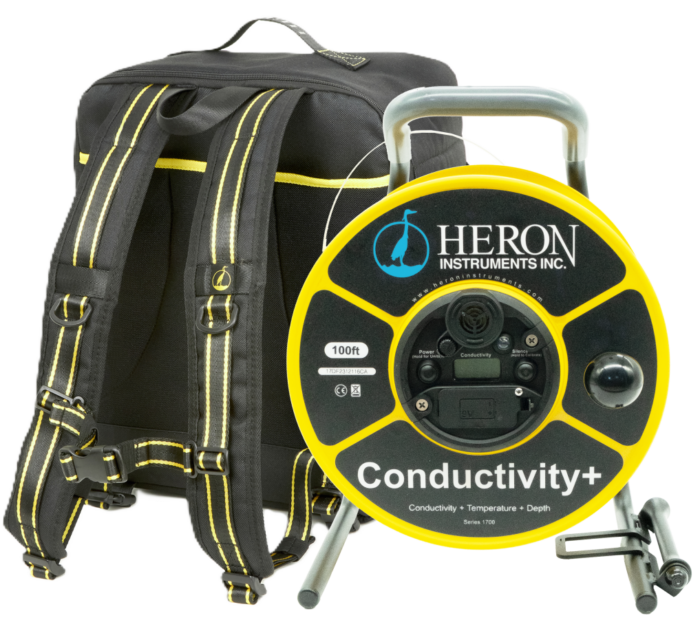

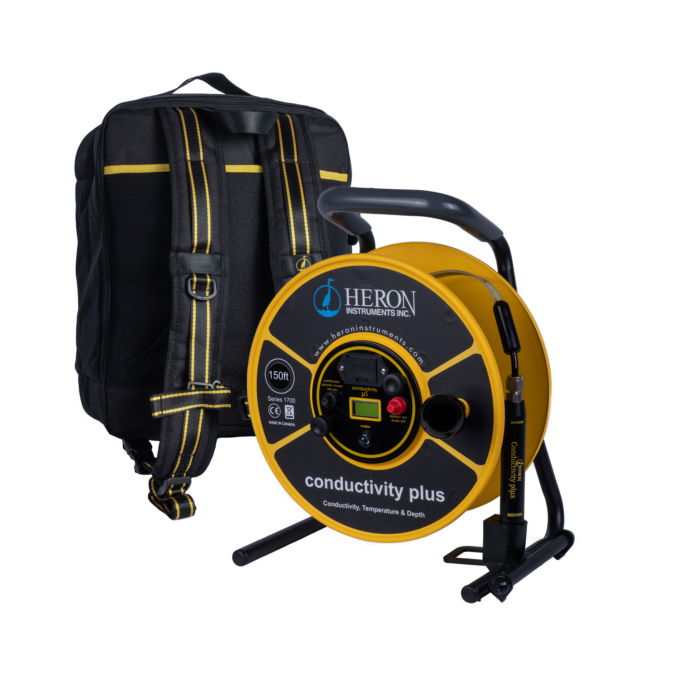

• FREE Backpack Carrying Case w/ adjustable straps, laptop & notepad pouches
• 1 of each 1413μS, 5000μS, and 12880μS Conductivity Solutions
• 4 Conductivity calibration bottles
• 1 Cleaning Brush
• Calibration certificate
• Tape rewind safety marker
• 2 Year Warranty
