dipper-Temp

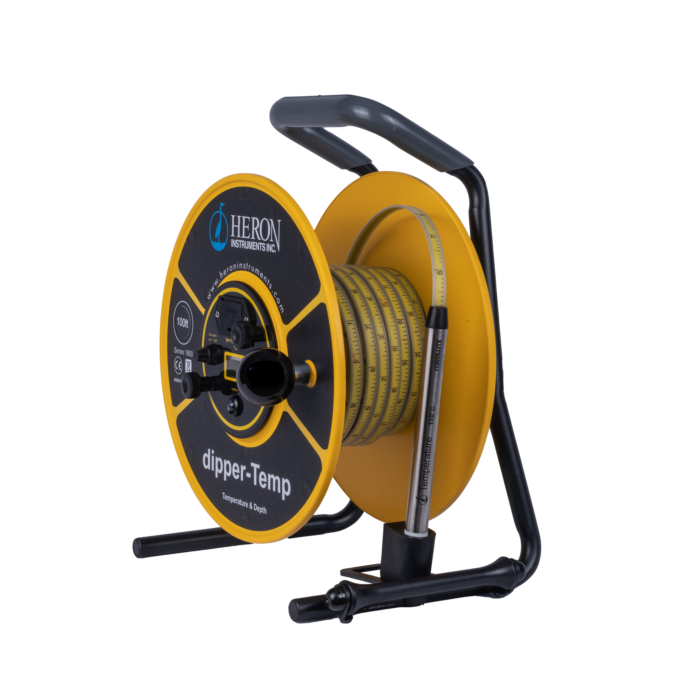

(Series #1800) – Temperature & Water Level Meter

  • Ideal for profiling temperature and static water levels
  • Kynar™ coated stainless steel tape for profiling up to 135°C (275°F)
  • Used in wells, boreholes, standpipes, lakes, rivers etc.
  • Automatic error detection and Modular Design makes for inexpensive and easy troubleshooting and repairs

$0.00

Product Options

Description

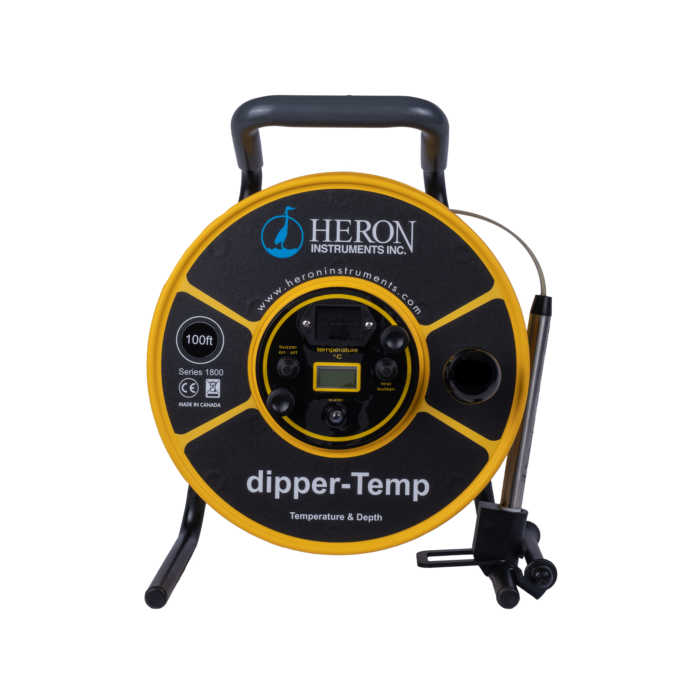

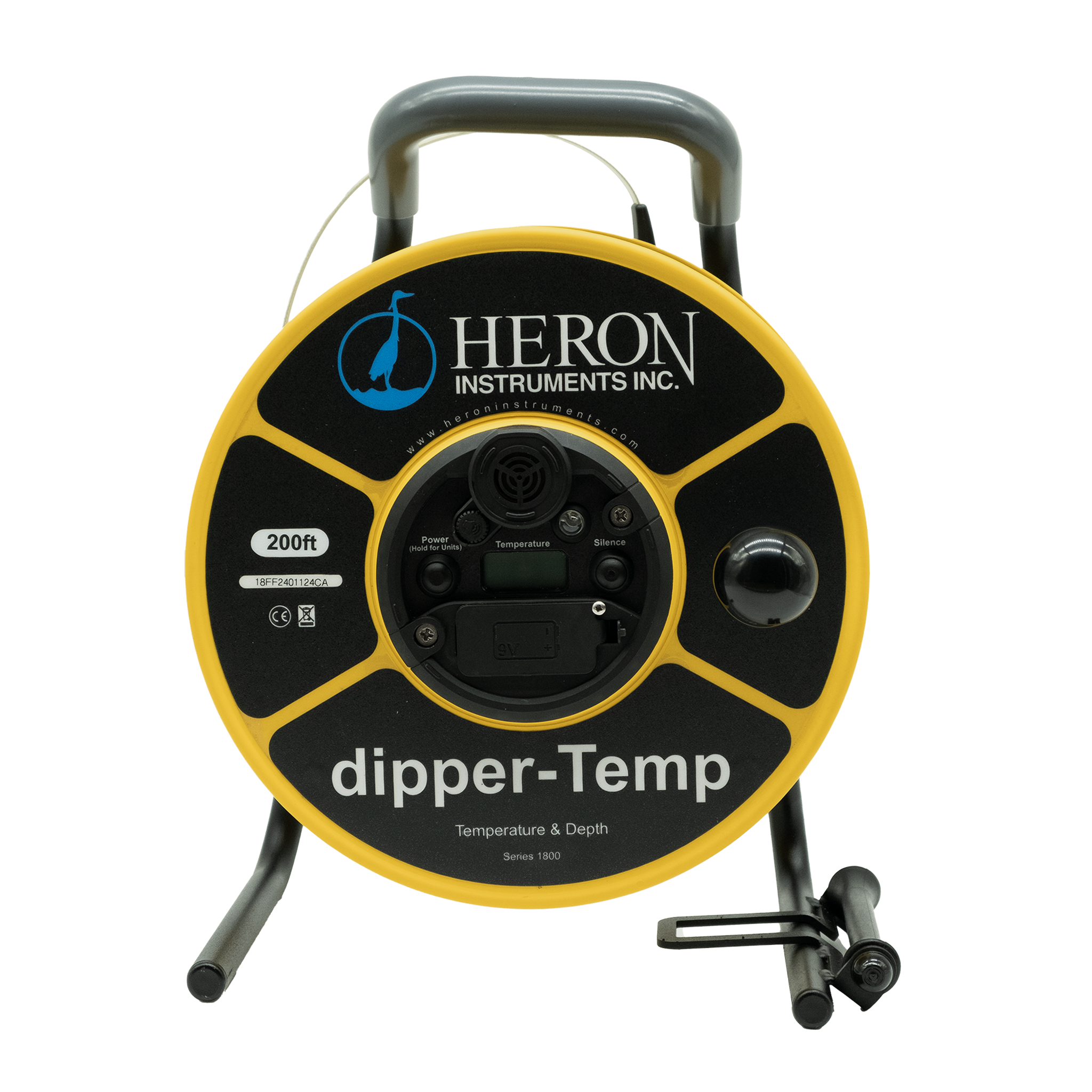

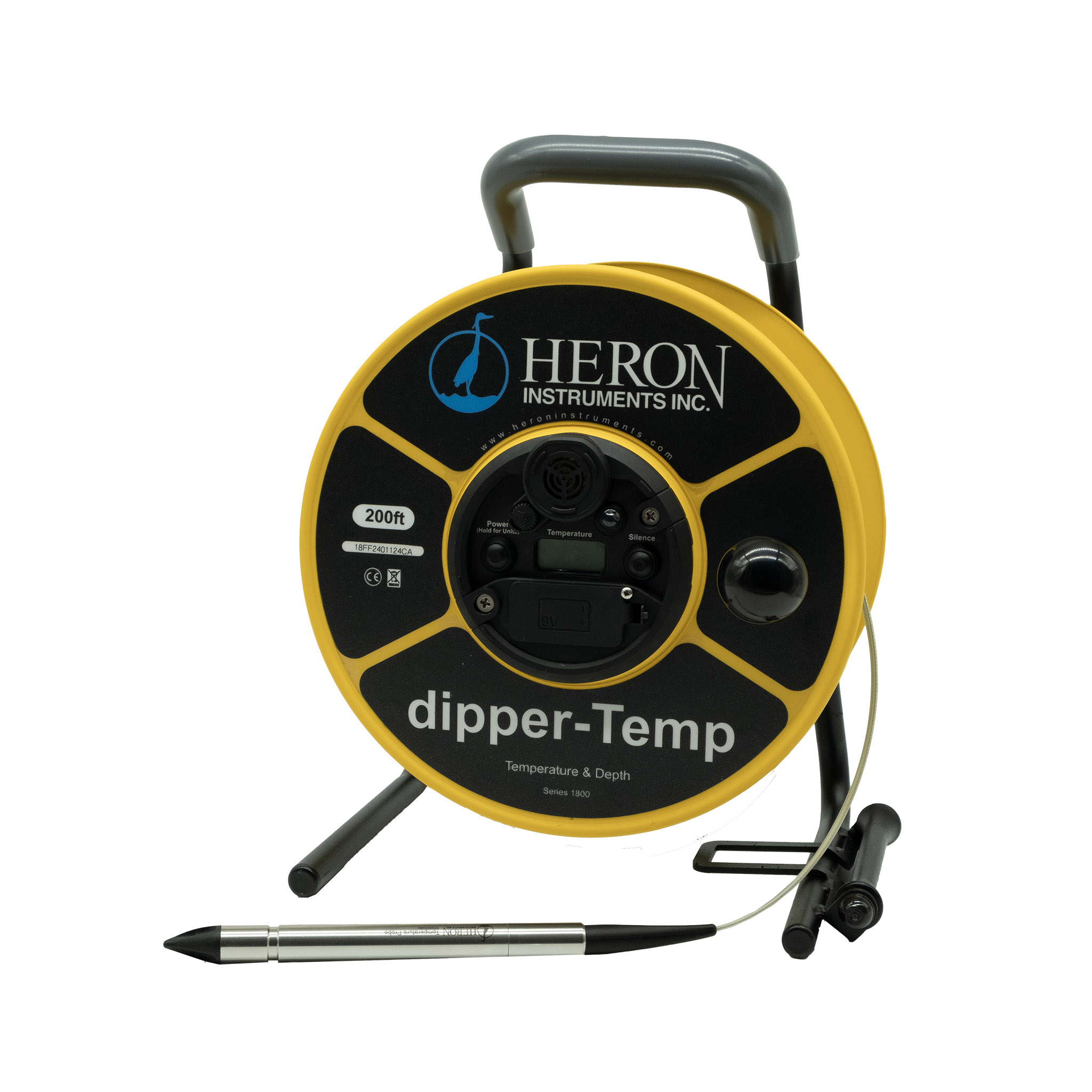

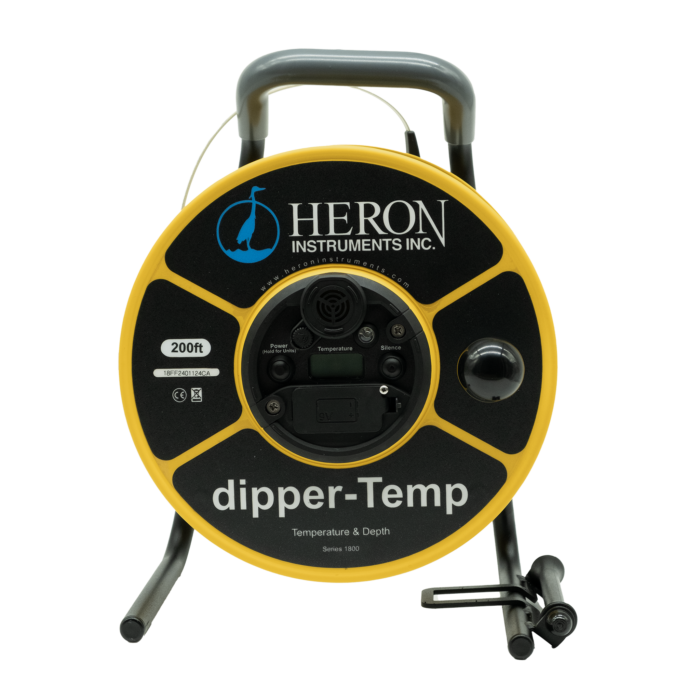

(Series #1800) – Temperature & Water Level Meter

  • Ideal for profiling temperature and static water levels
  • Kynar™ coated stainless steel tape for profiling up to 135°C (275°F)
  • Used in wells, boreholes, standpipes, lakes, rivers etc.
  • Automatic error detection and Modular Design makes for inexpensive and easy troubleshooting and repairs

Description

The dipper-Temp Temperature Meter is ideal for profiling temperature and static water levels in wells, boreholes, standpipes, lakes and rivers. Temperature can alter the physical and chemical properties of water and should be accounted for when determining an increased level in biological activity and water chemistry. Groundwater temperature surveys have also taken on a new significance as geothermal energy becomes more important for domestic heating and cooling. The premium padded carry case comes included to protect your precision instrument from the elements.

The heat resistant coated measuring tape on the dipper-Temp allows for temperature profiling up to 135˚C.

Features:

–           Narrow 16mm (5/8”) diameter probe

–           Temperature accuracy of +/-0.05°C

–           Temperature resolution of 0.01°C

–           Wide temperature range of -45°C to +135°C (-50°F to +275°F)

–           Support for changing units to Celsius, Fahrenheit, Kelvin, and Rankine.

–           Fully sealed and removable water-proof electronic panel.

–           Triple sealed and removable electronic probe.

–           Automatic sensitivity adjustment to filter out cascading water.

–           Integrated self diagnostics and modular design to help troubleshoot in the field.

–           Volume adjustment to protect your hearing.

–           Best in class battery life.

–           Battery life indication on startup.

–           Lengths up to 5,000ft (1.5km) available on request.

–           PFAS Free wetted materials.

–           Stainless bearings for smooth winding.

–           Built in well hanger and roller to protect your tape.

Included:

  • Premium Stainless Steel Kynar Coated Tape

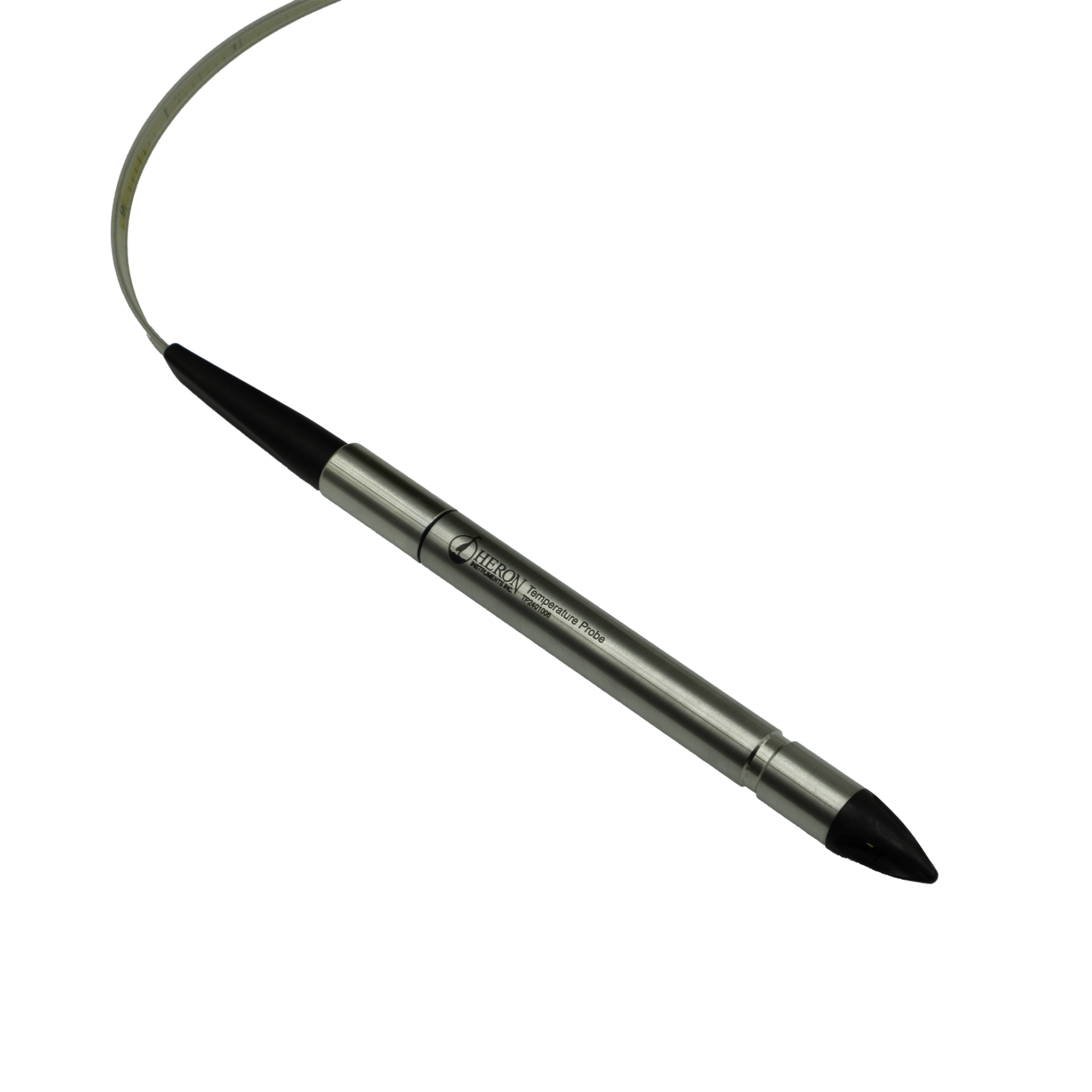

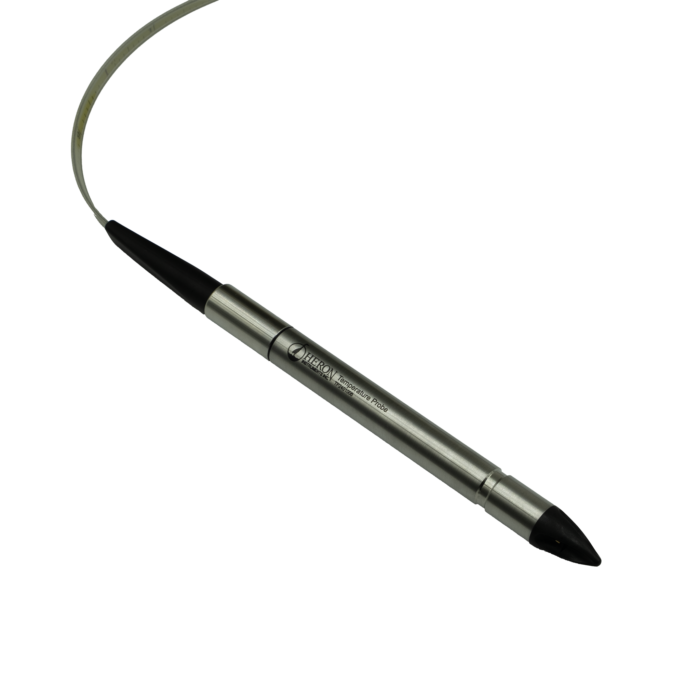

  • 5/8” (16mm) Temperature Probe (IP68) w/ holder
  • Electronic Panel with audio and visual signals (Fully Encapsulated to IP65)
  • High Contrast LCD Display
  • Vinyl, ergonomic holding grip
  • 9V Battery (w/ battery test button)
  • Audio On/Off Control

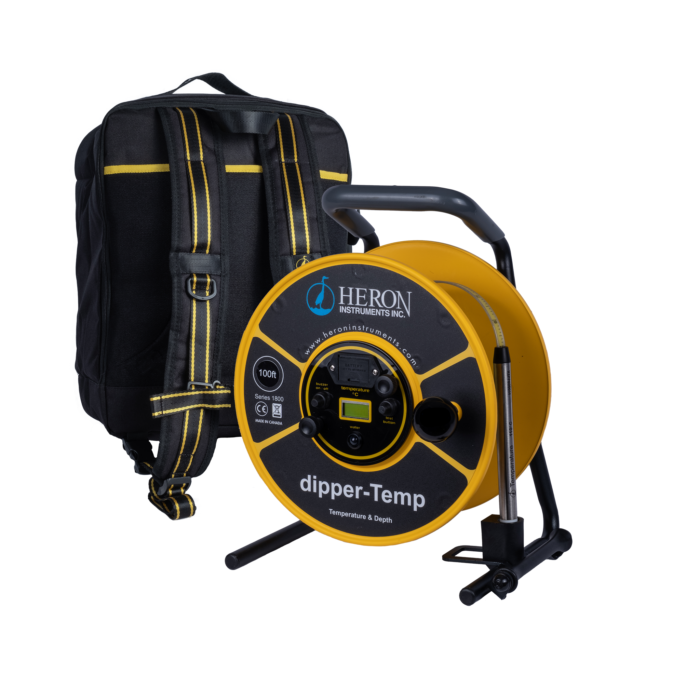

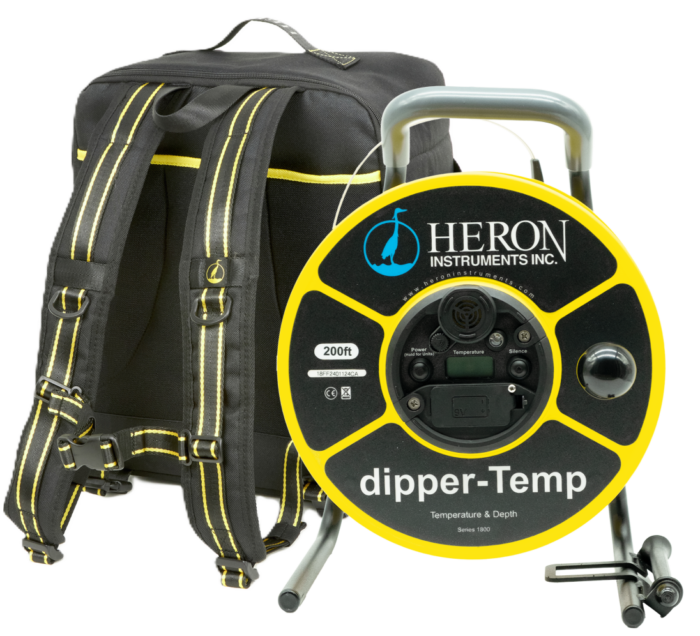

  • FREE Backpack Carrying Case w/ adjustable straps, laptop & notepad pouches



Additional information

Measurement Preference

Imperial, Metric

Length

30m, 45m, 60m, 100m, 150m, 200m, 300m, 100ft, 150ft, 200ft, 300ft, 500ft, 750ft, 1000ft

Manual

dipper-Temp Manual

Specifications

Download dipper-Temp Specifications Sheet

Videos



Brochure

Download Dipper-Temp Brochure
