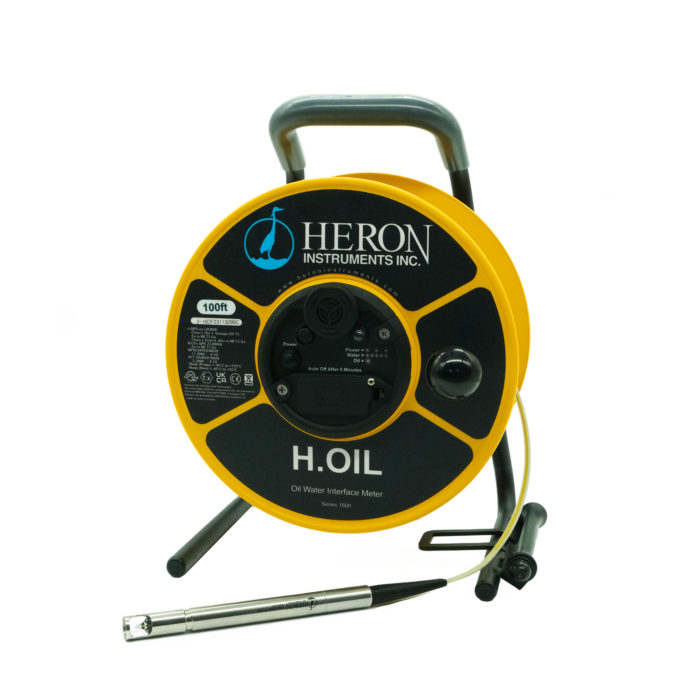

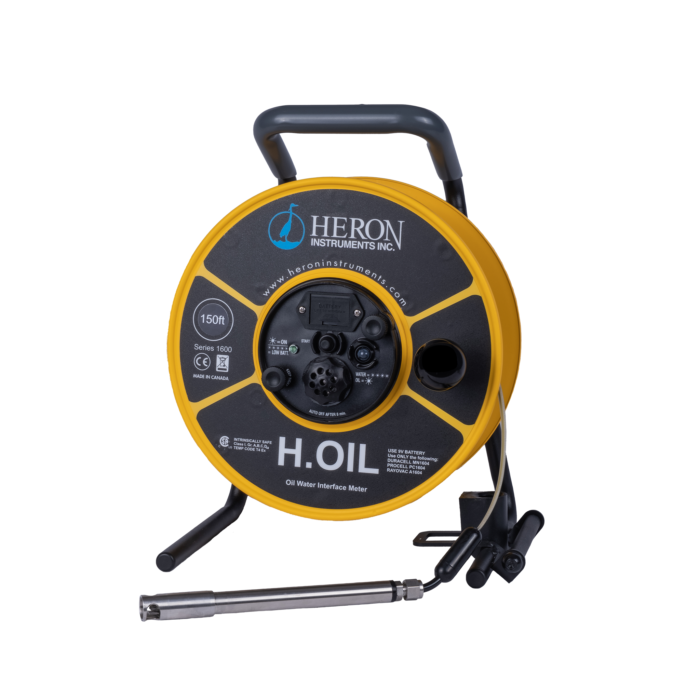

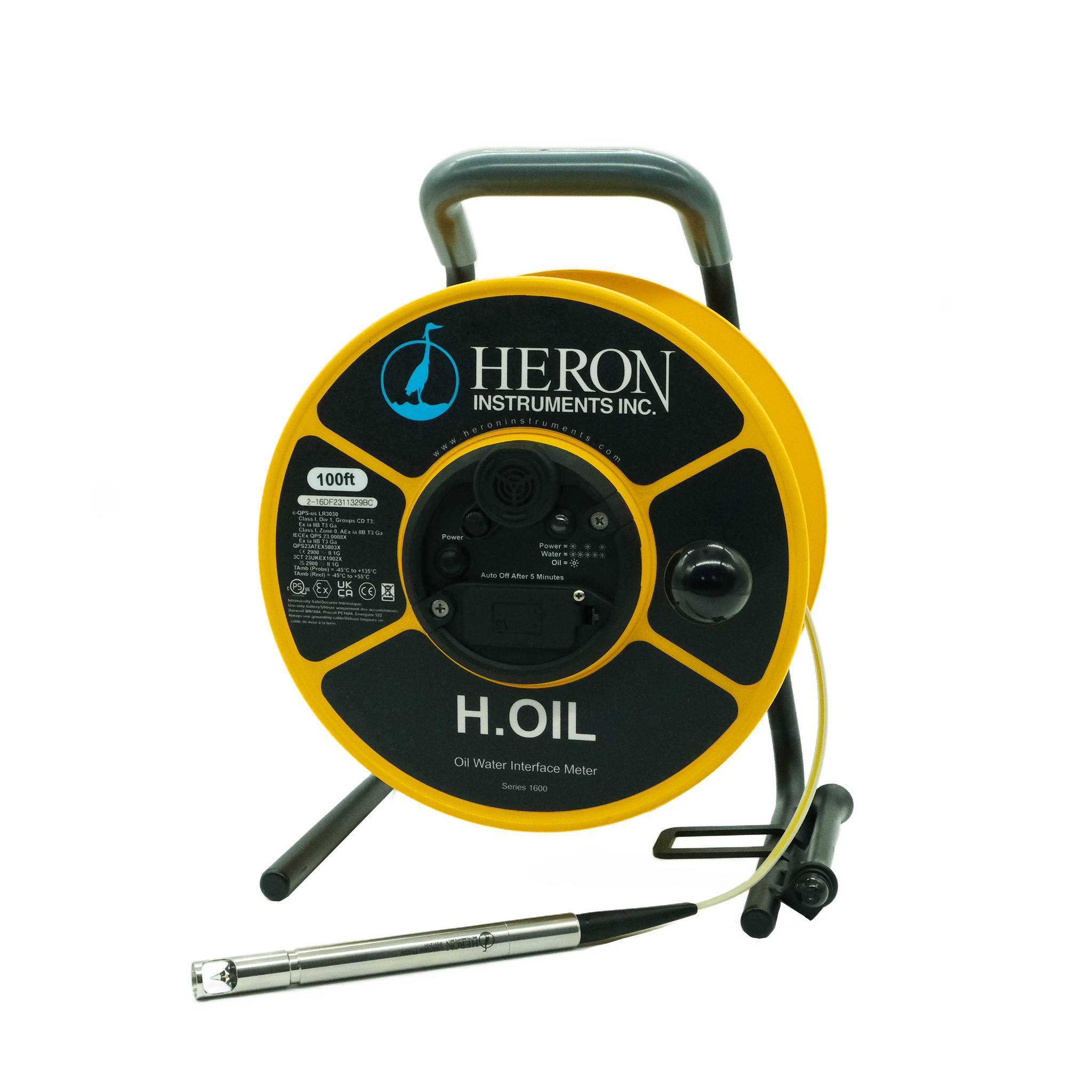

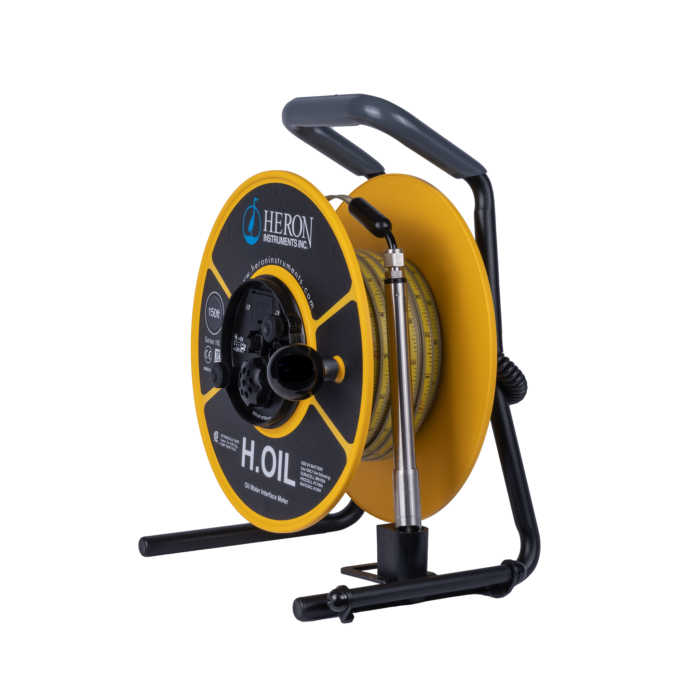

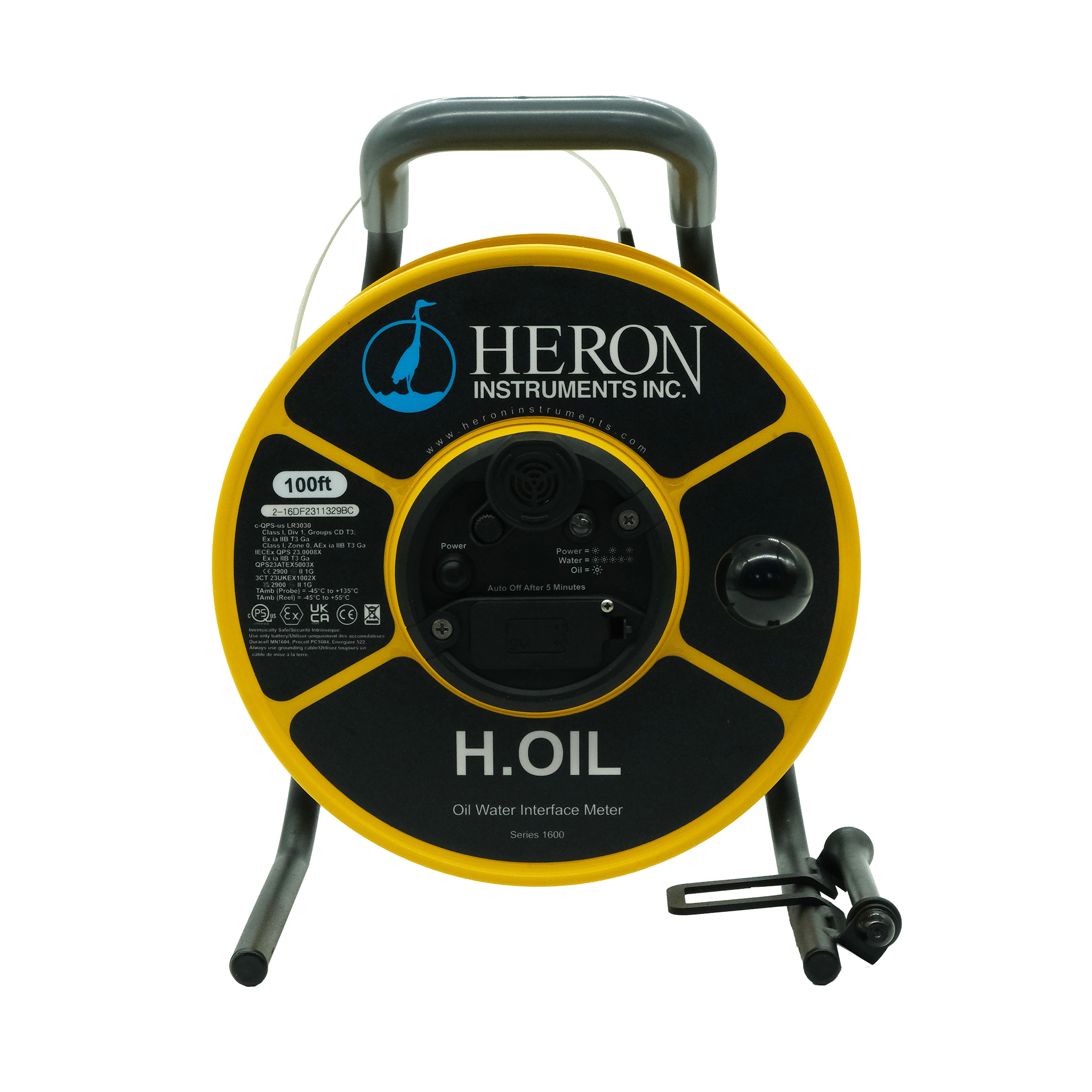

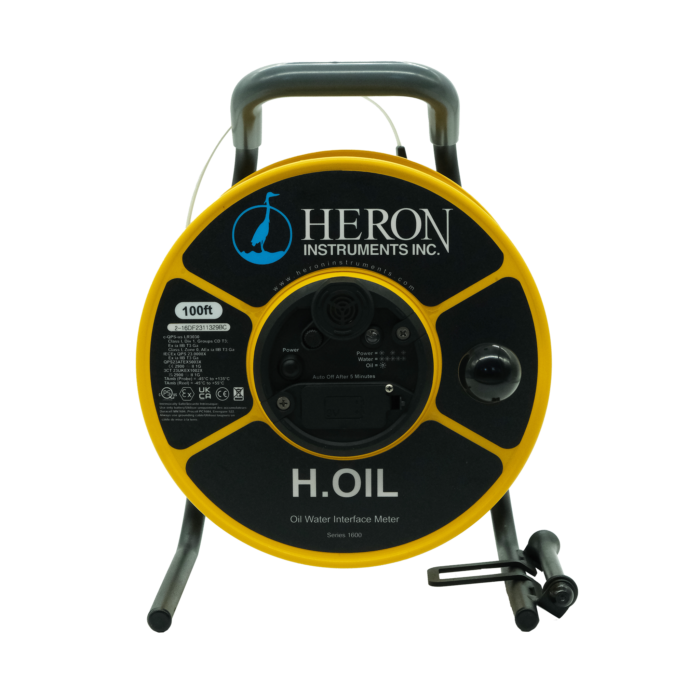

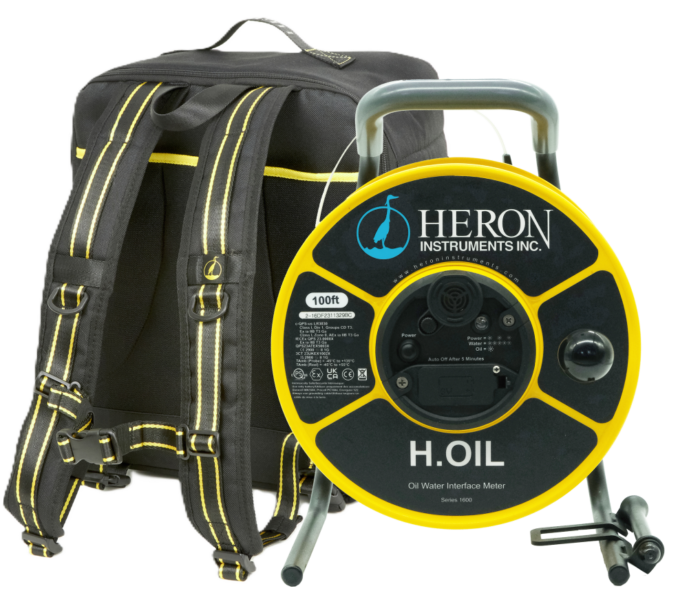

(Series #1600) – Oil/Water Interface Meter

  • Measures interface levels between two liquids
  • CSA Intrinsically Safe Certification
  • Detect floating product (LNAPL), sinking product (DNAPL) and water
  • Ideal for use in hazardous environments for Remediation Sites, Oil & Gas, Chemical and Petrochemical Industries
  • Modular Design makes for inexpensive and easy repairs

See all H.OIL Replacement Parts

$0.00

Product Options

Description

The H.OIL Oil/Water Interface meter is used to measure the interface level between two liquids in the same tank, vessel, well or aquifer. The dissimilar density of two liquids means the lower density, non-conductive product (LNAPL) will float on top of the higher density, conductive liquid (water). Denser products will tend to sink (DNAPL), creating a layer under the water. The premium padded carry case comes included to protect your precision instrument from the elements.

The hydrocarbon resistant Kynar™ jacketed, high tensile steel core tape is able to withstand hydrocarbons, solvents and other harsh contaminants. The CSA intrinsically safe certification makes the H.OIL ideal for use in hazardous environments by Oil & Gas, Chemical and Petrochemical Industries.

Included:

• Premium Stainless Steel Kynar Coated Tape

• CSA Intrinsically Safe Certification w/ Class I, Groups A,B,C and D in zones 0 & 1

• 3/4” (19.2mm) Interface Probe (IP68)

• Electronic Panel with audio and visual signals (Fully Encapsulated to IP65)

• Grounding Lead

• Vinyl, ergonomic holding grip

• 9V Battery

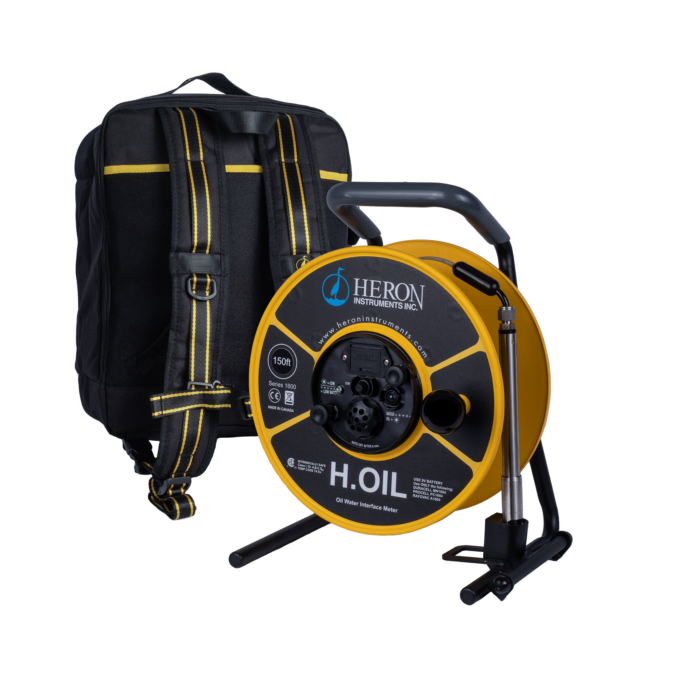

• FREE Backpack Carrying Case w/ adjustable straps, laptop & notepad pouches

Additional information

Measurement Preference

Imperial, Metric

Length

15m, 20m, 30m, 45m, 60m, 100m, 150m, 200m, 300m, 50ft, 60ft, 100ft, 150ft, 200ft, 300ft, 500ft, 750ft, 1000ft

Manual

H.OIL / S.moil Manual Download

Specifications

Download H.OIL Specification Sheet

Certification

SEE CERTIFICATION

Videos

Brochure

Download H.OIL Brochure
